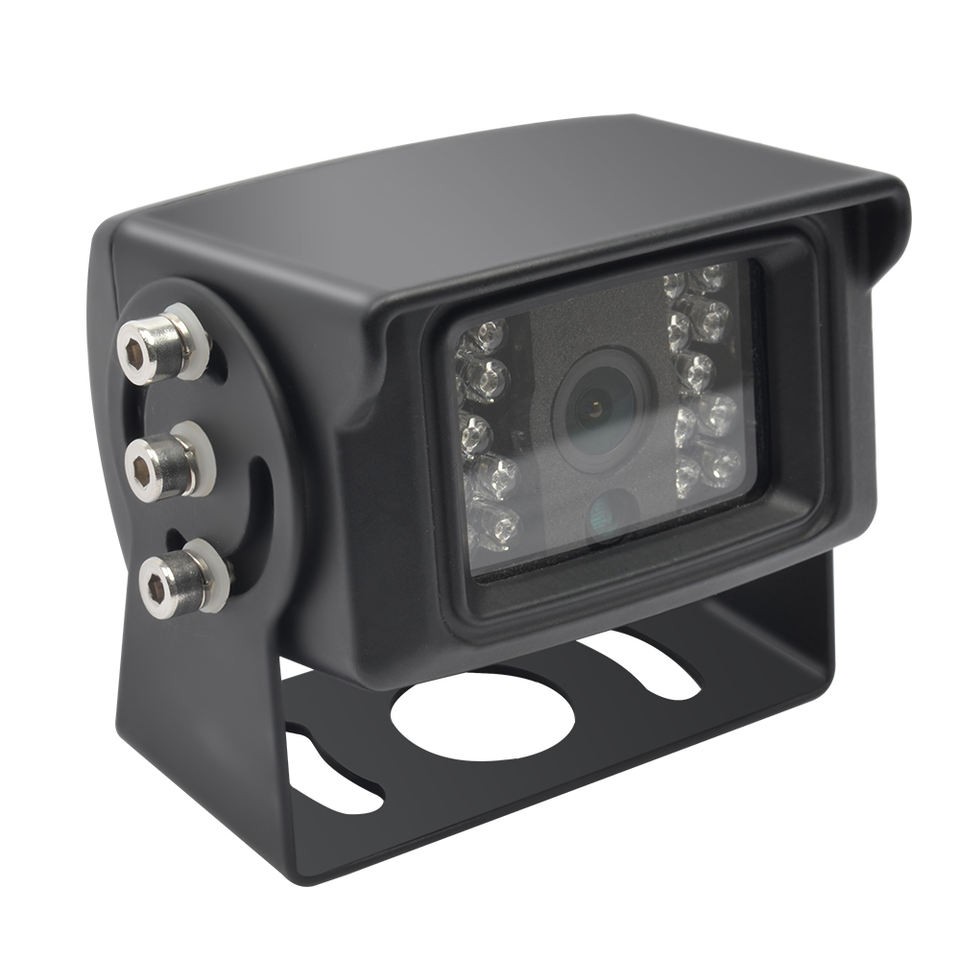

  • SV-CM9883 IR Light Rearview Camera AHD 720P 1080P

SV-CM9883 IR Light Rearview Camera AHD 720P 1080P

SV-CM9883 IR Light Rearview Camera AHD 720P 1080P

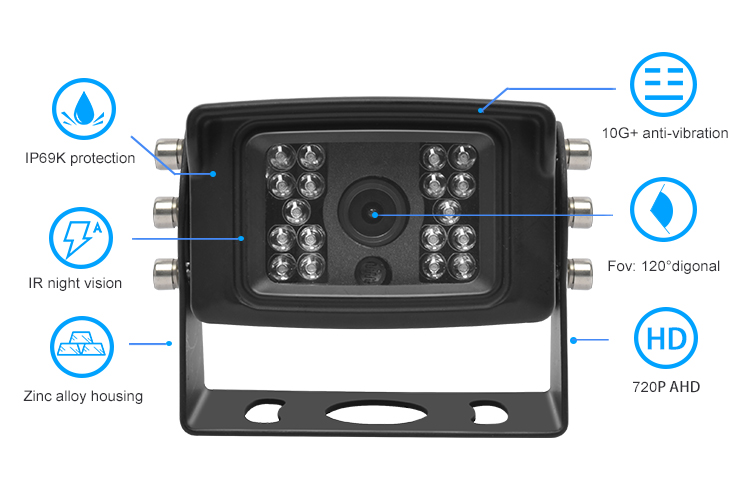

Features:

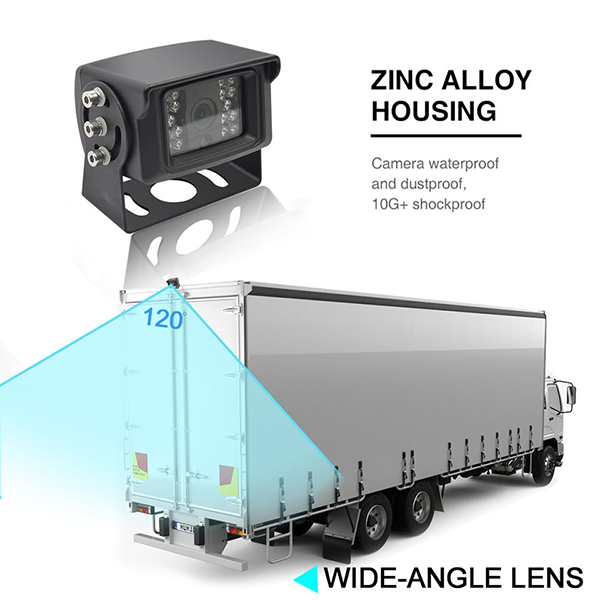

* Zinc alloy body
* 10G+ anti-vibration
* IP69K protection
* IR LED lights: 18pcs
* FOV: 120° diagonal
* Audio optional
* Color: Black

Specification
Image Device
1/3” CMOS
Waterproof Grade
IP69K
Frame Rate
25fps /30fps
Effective Pixels
1288 (H) x 976 (V)
Pixel Size
2.8 μm x 2.8 μm
Resolution
720P
Video Output
1.0Vp-p, 75Ohm
AGC
Auto
S/N Ratio
Better than 52dB
White Balance
Auto
Operating Temperature
–20℃ ~ 65℃, RH95%MAX.
Storage Temperature
–30℃ ~ 80℃, RH95%MAX.
Power Supply
DC12V / DC12~24V
Viewing Angle
120°
Minimum Illumination
0 Lux (with IR)
Night vision distance
8~10m
Image mode
Mirror/Normal image switch
Audio
Optional
