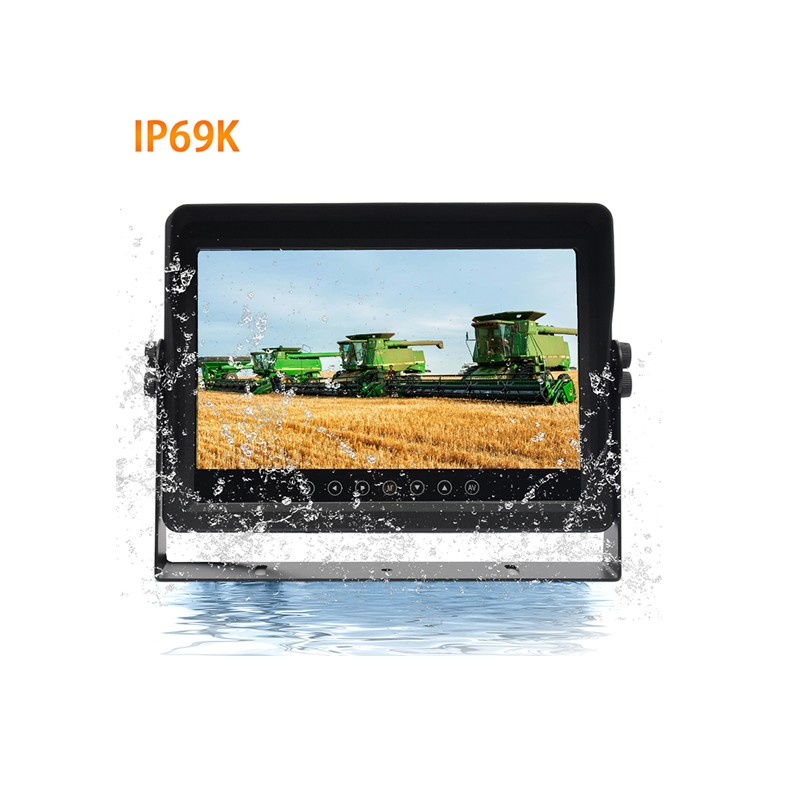

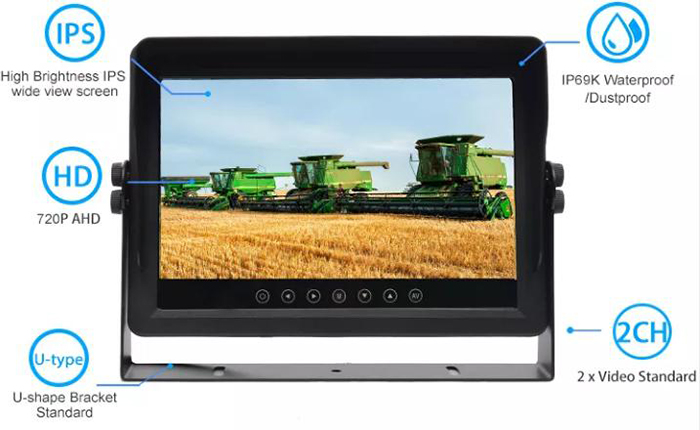

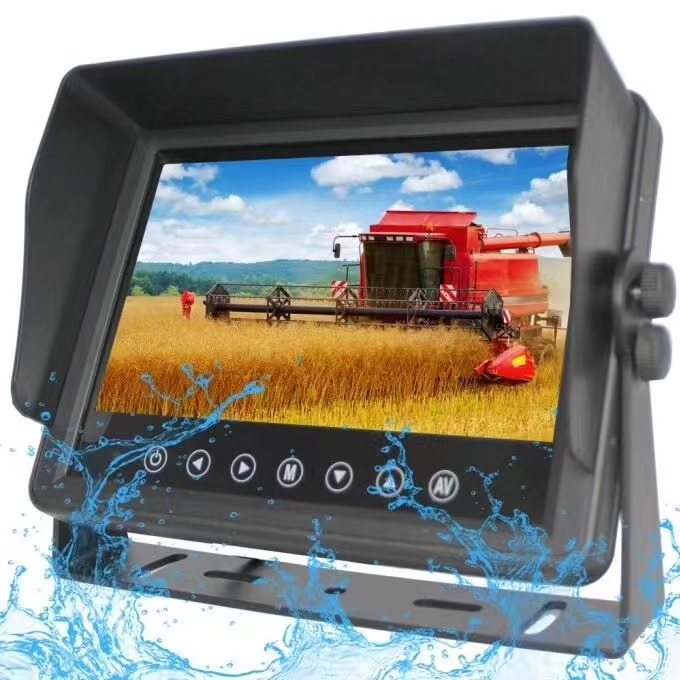

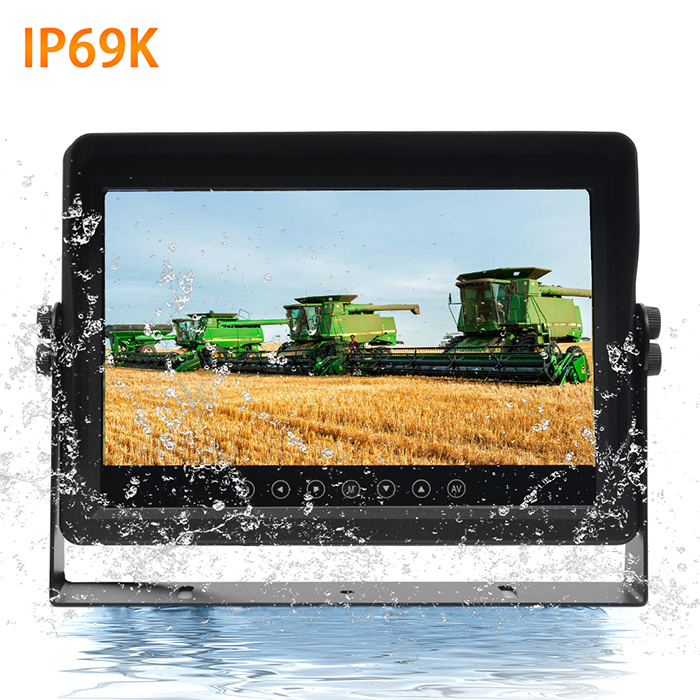

7 inch Waterproof IP69K monitor(SV-718W)
*Full compatibility with AHD 720P/1080P & CVBS (NTSC/PAL)
*Support mixing connection of cameras of different formats
*High brightness and high resolution display
*Fast boot up and fast switching by button or trigger
*DC12-36V wide voltage range, industrial level PCB design with protection against over-voltage, under-voltage, reverse polarity,static and surge, etc.
*4-pin aviation connector with waterproof cover

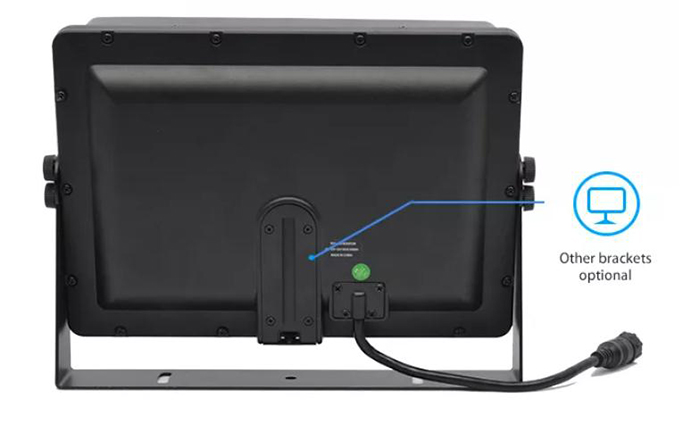

*Various brackets optional
*IP69K Waterproof/Dustproof Monitor
*Metal housing, detachable sunshade
*7 x touch buttons with backlight
*U-shape bracket standard, Support AMPS mounting
*Audio optional (IP67 for audio version)
*AHD, Split AHD and CVBS versions available
Specification:
|
Panel |
10.1’’ IPS |
Waterproof Grade |
IP69K |
|
Resolution |
1024x3(RGB)x600 |
Aspect Ratio |
16:9 |
|
Brightness |
500 cd/m² |
Operating Temperature |
-20~+70℃ |
|
Contrast |
700:1 |
Storage Temperature |
-30~+80℃ |
|
Viewing Angle |
85 /85 /85 /85 (L/R/U/D) |
Power Consumption |
Max.25W |
|
Voltage Range |
DC 12V-36V |
Power for Cameras |
Max. 4×600mA, 12V |
|
Video Input |
2-channel standard |
Operating Pressure |
10~110g |
|
TV System |
PAL / NTSC |
Initializing Time |
3 seconds |
|
Audio Input |
N/A |
Switching Time |
1.5 seconds |

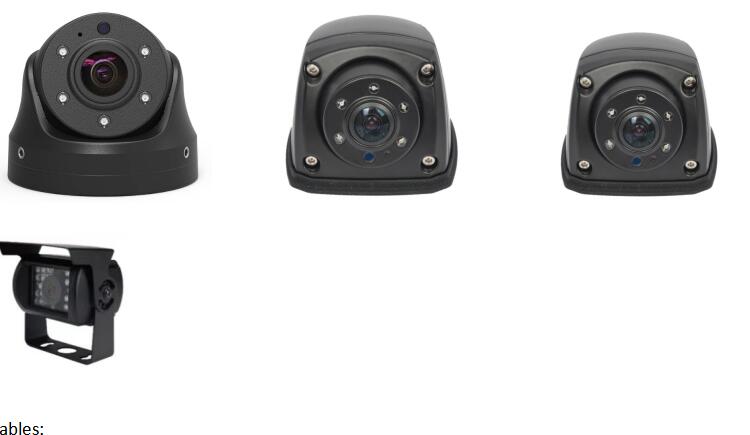

Heavy duty cameras are available
