4.3 inch TFT LCD Mirror Car Parking Rearview Monitor With 2 Video Input(SV-MC4301)

Product Description

Main Features

- Super slim

- Super high-quality picture

- TFT-LCD, display your favorite VCD, DVD, DVB ....

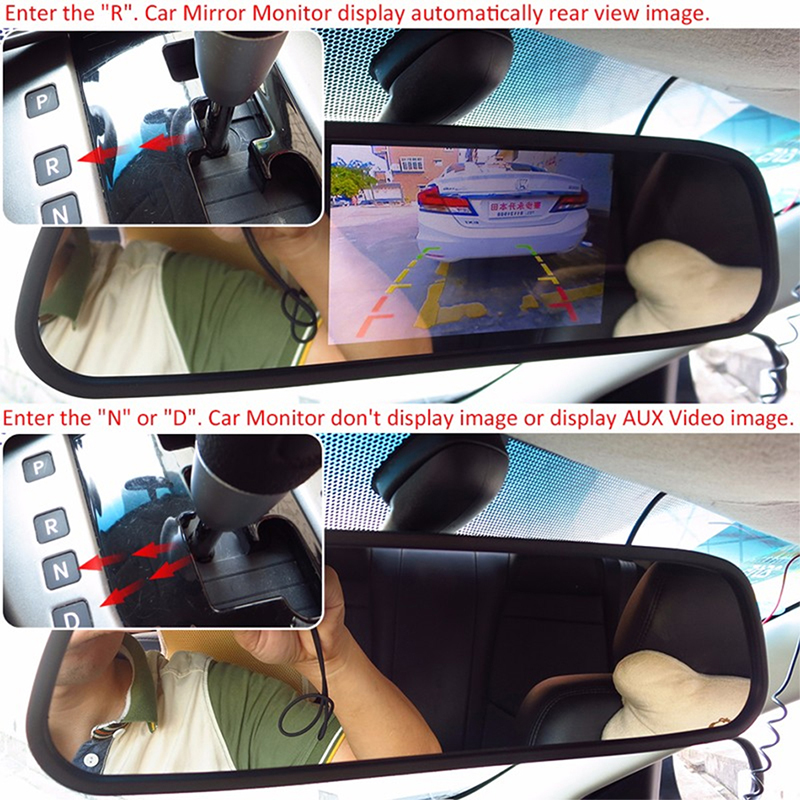

- Automatically turn on and switch to video source when video signal is detected.

- Ideal for car reversing monitor and vehicle entertainment.

- Clip on the original rear view mirror, simplifies installation and detachment

- Screen size: 4.3" color TFT LCD

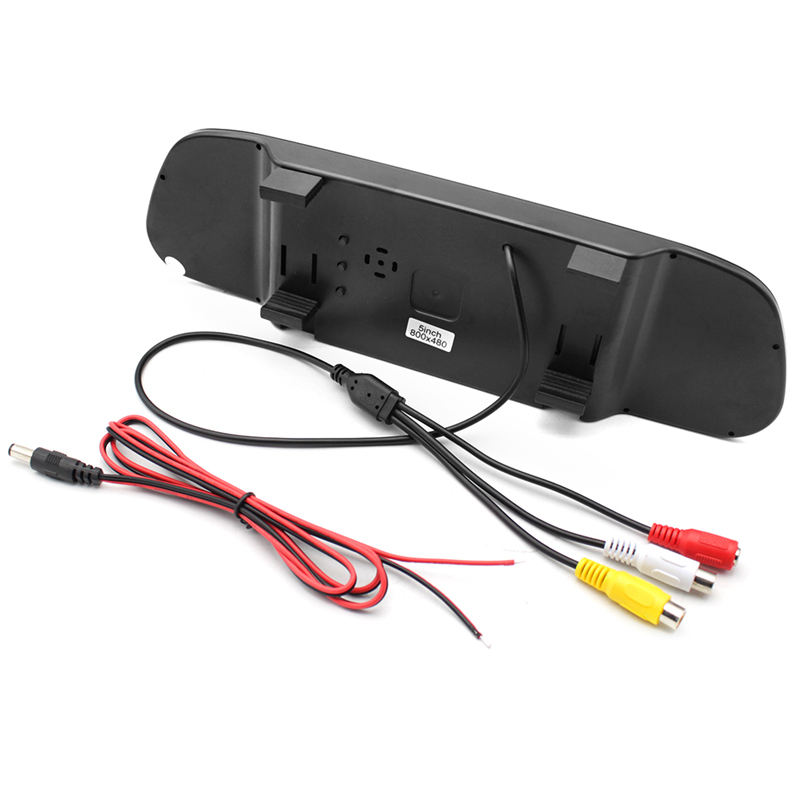

- 2CH vedio in, No Audio in

- The mirror looks like a normal mirror when the cameras are not turned on.

- Wide viewing angle (V x H): 120 x 90

- Screen format: 16:9

- System: PAL/NTSC auto switch

- Color: Black

- Mirror coated with special glass surface (ensure 100% background visibility)

- Nominal voltage: +12V DC

- Power consumption: <3W

- Working environment: -20 ~ +60 degrees

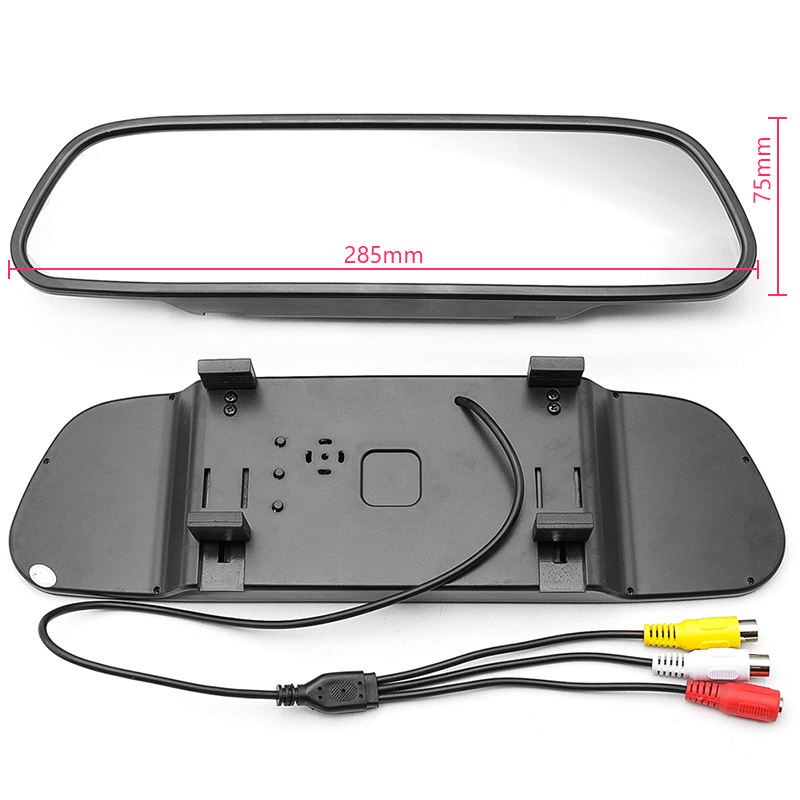

- Dimensions: 28.7cm(L) x 7.5cm(H) x 1.7cm(W)

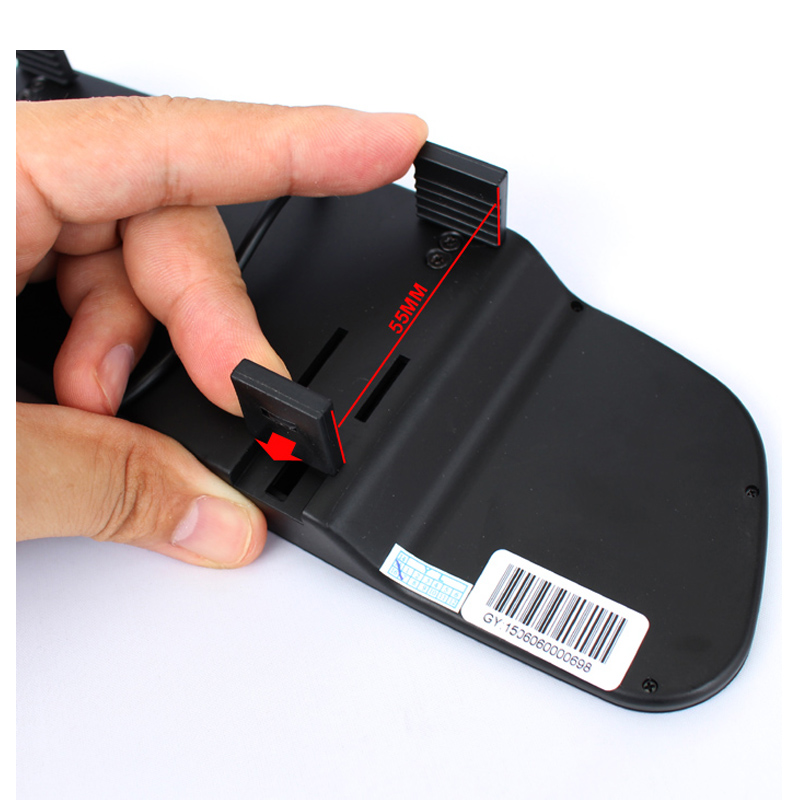

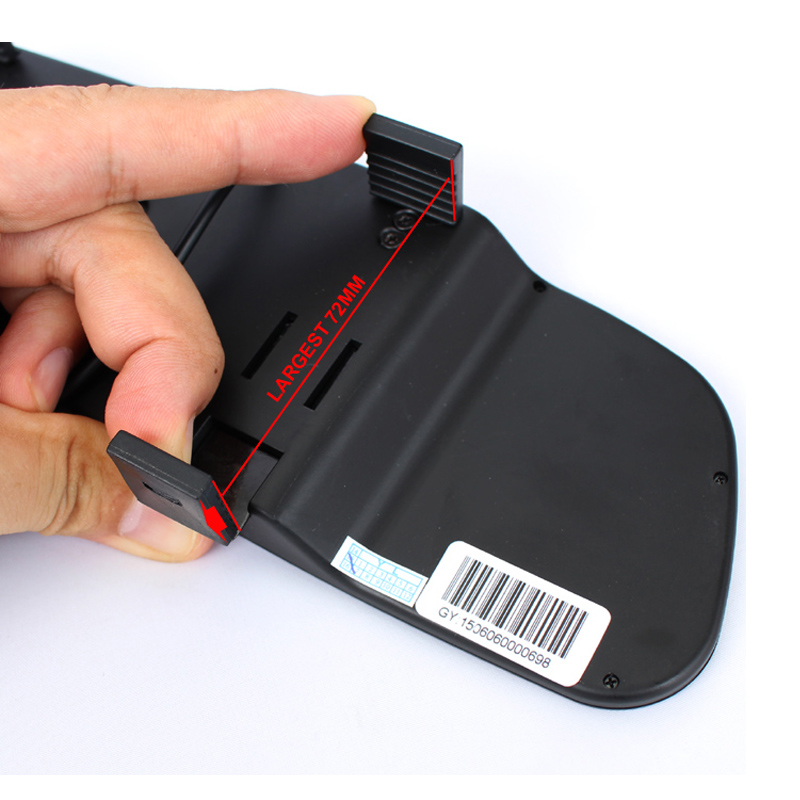

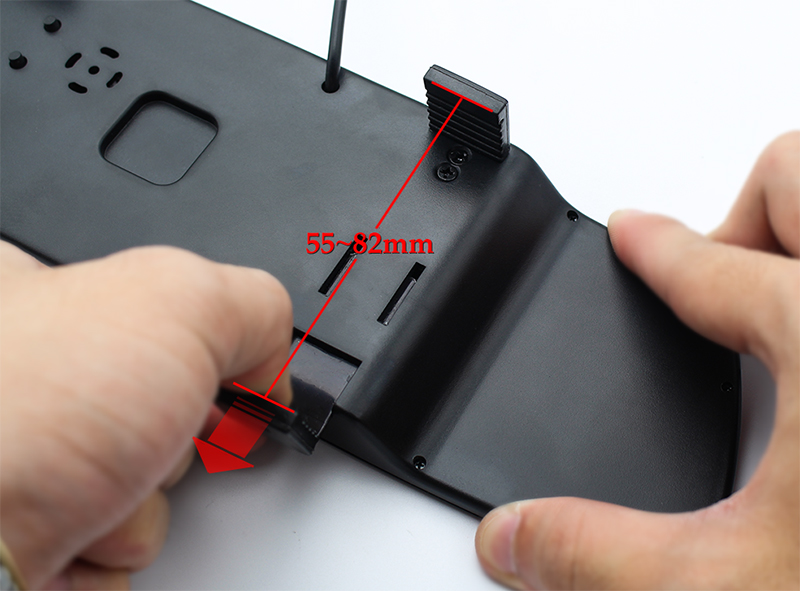

- Mounting: 5.7 to 7.7cm (Height) x any length

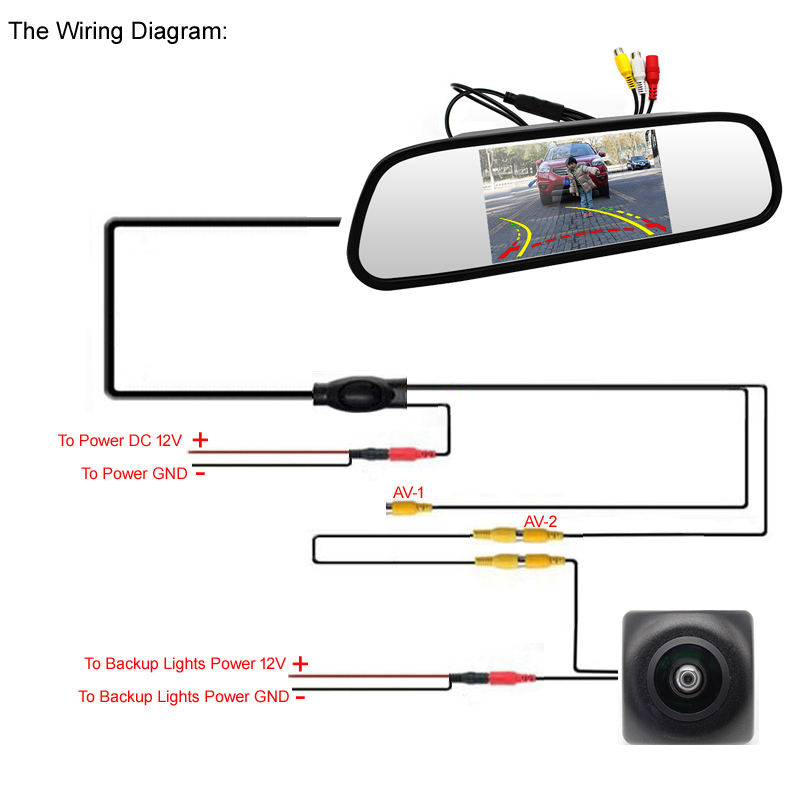

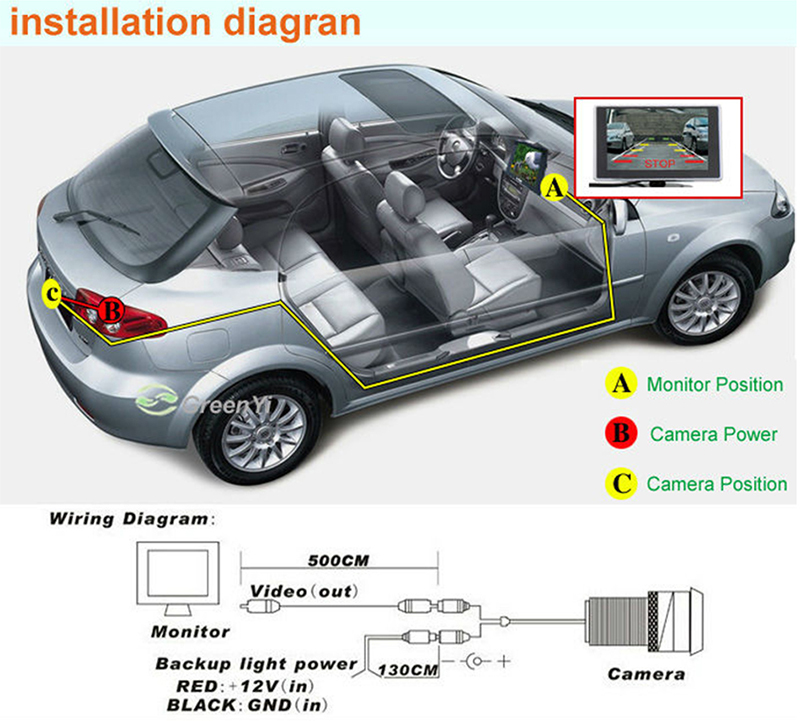

Note: please Connect the Rearview camera's power cable with Reversing lamp, and connect camera's video cable with LCD's white cable (Video V1),then the LCD will show Camera's video when you are Reversing

Specification
