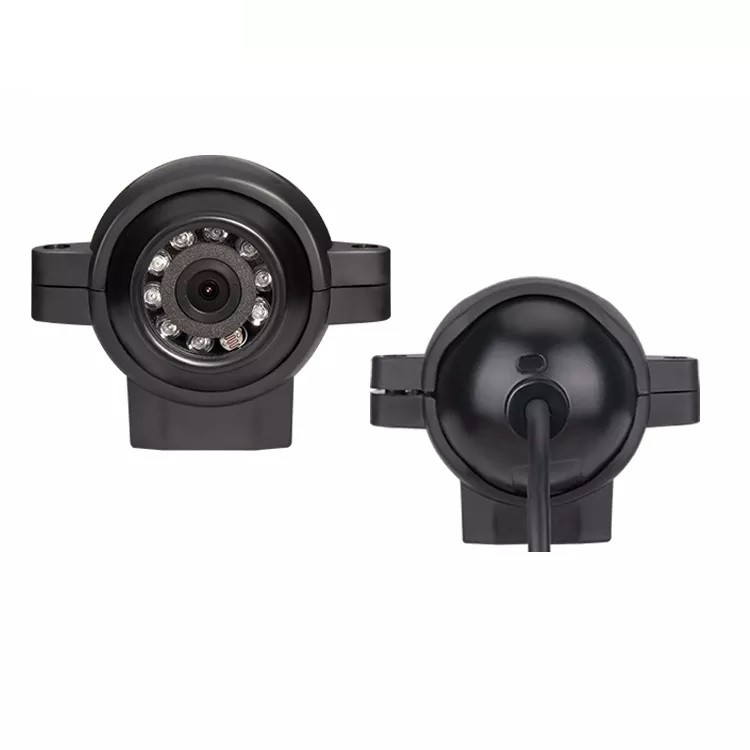

AHD Wide Angle truck Side View Car Camera Truck Side Mirror Arm Camera for Truck Heavy Duty
Specification
|
Image Device |
1/3” CMOS |
Waterproof Grade |
IP69K |
|
Frame Rate |
25fps /30fps |
Effective Pixels |
1288 (H) x 976 (V) |
|
Pixel Size |
2.8 μm x 2.8 μm |
Resolution |
720P |
|
Video Output |
1.0Vp-p, 75Ohm |
AGC |
Auto |
|
S/N Ratio |
Better than 52dB |
White Balance |
Auto |
|
Operating Temperature |
–20℃ ~ 65℃, RH95%MAX. |
Storage Temperature |
–30℃ ~ 80℃, RH95%MAX. |
|
Power Supply |
DC12V / DC12~24V |
Viewing Angle |
120° |
|
Minimum Illumination |
0 Lux (with IR) |
Night vision distance |
8~10m |
|
Image mode |
Mirror/Normal image switch |
Audio |
Optional |
AHD truck side view camera
Specs:
*Sensor:CMOS/720P AHD/960P/1080P/CCD
*Bulit in IR LED lights
*View angle:115°(H)60°(V)
*Total pixels:1280(H)*720(V) or 480/700TVLINES
*TV system:NTSC(PAL,AHD Optional)
*Mini illumination: 0~0.01 Lux
*Power Supply:DC 12 V(12-24V Optional)
*Waterproof:IP68-IP69K
*Microphone:Optional +$1.5
*4 pin aviation connector （RCA Optional）
FEATURES:
Made of aluminum alloy with rectangular shell.
Stainless steel screws,stainless steel bracket is available
Heating function is optional
Perfect night-vision,infrared distance 3-5m
