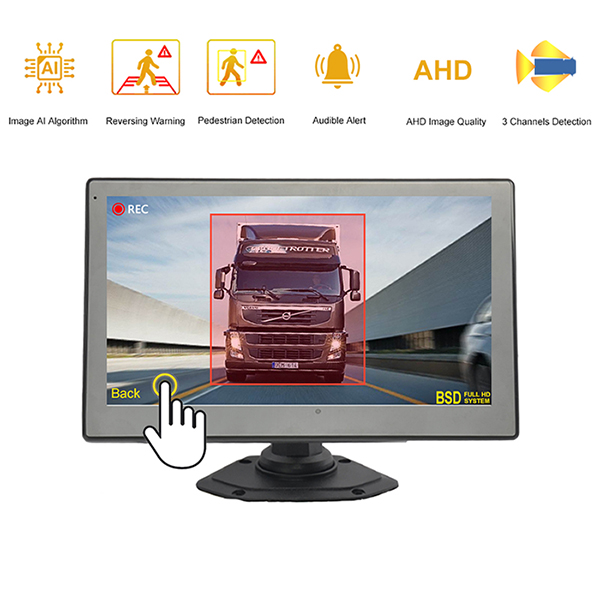

BSD 10.1 inch touch screen AI monitor

BSD 10.1 inch AI screen touch monitor




The monitor can work with any car cameras with 4 pin aviation connector.

Technology Features:

The Smart BSD DVR Monitor System is an integrated system with 4-channel quad view display, digital video recording and active detection alert features.

Powered by latest AI technology and own algorithm,the system is capable of detecting left/right and rear blind spots at the same time and accurately recognizing and outlining on screen pedestrians, cyclists, vehicles and animals within camera viewing area.

It automatically starts to alert on screen and by voice (or beeping) at the same time when pedestrians, cyclists or vehicles appear in the danger zone. The danger zone can be set and adjusted according to your application to avoid false or unnecessary alarms.

Product Features:

4-Channel AHD input, Quad Screen Display default,

5-Automatically switch to full screen rear view when reversing,

6-Automatically switch to full screen side view when turning light is triggered,

7-Simultaneous detection of 3-Channel (left, right & rear) cameras,

8-OSD menu and voice alert available in Chinese, English, Japanese and Korean, other languages to be customized,

9-4-Channel simultaneous recording in 720P AHD, support SD card storage, up to 128GB,

10-IR cameras equipped to ensure clear display and accurate visual recognition at night,

11-7" Monitor w/ button model and 10.1" touch screen model available


Specification:

Description

AI Active Detection 10.1" HD Quad-View Color Touch Screen Monitor

Resolution

1024 x 3(RGB) x 600

Warning distance

Up to 6-meter

Maximum Number of Cameras

4

Audio input

0

Audio output (loudspeaker)

1W

Trigger

5

Max. Brightness

500 cd/m²

Contrast

1000:01:00

Minimum Operating Temperature

-20ºC, RH 90%

Maximum Operating Temperature

+70ºC, RH 90%

Viewing Angle Monitor

U: 85°,D: 85°, R/L: 85°/85°

Mirror Function

Yes

Monitor Diameter (mm)

250mm (W) × 150mm (H) × 30mm (T)

Split Screen

Yes

Volts

12-36V

Consumption

less than 12W (without cameras)

Anti-vibration

ISO 16750-3 Max. 10G
