  • SV-D667VS 7'' IPS AHD rear view mirror monitor with double recording and vertical views

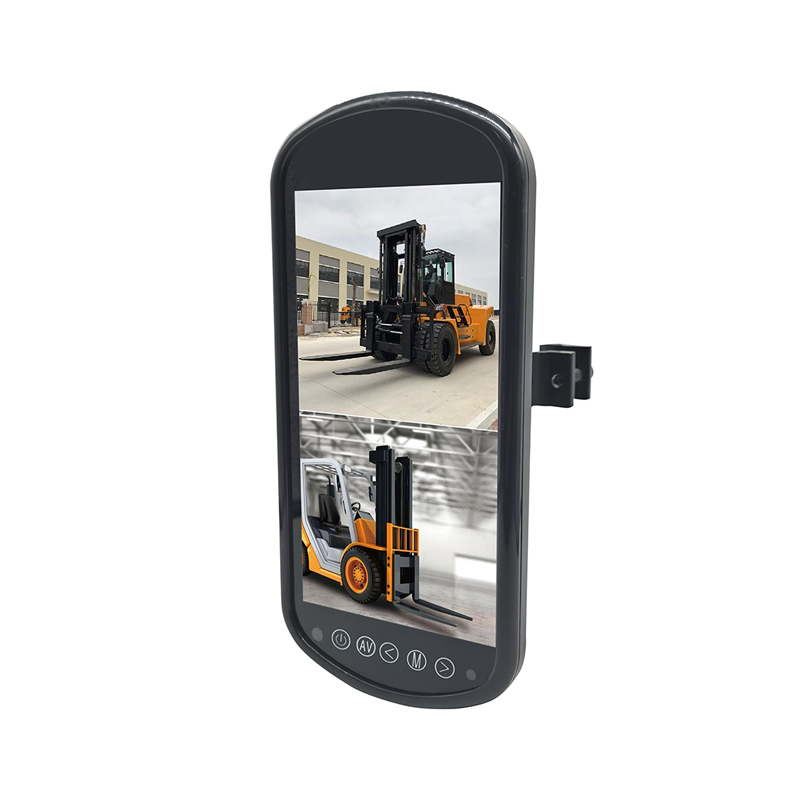

SV-D667VS 7'' IPS AHD rear view mirror monitor with double recording and vertical views

  • Product Item : SV-D667VS
  • Category: Car Mirror Monitor
  • Product description:SV-D667VS 7'' IPS AHD rear view mirror monitor with double recording and vertical views
  • INQUIRY

SV-D667VS 7'' IPS AHD rear view mirror monitor with double recording and vertical views

7"inch High Defintion Double Recording Dispiay
AV Resolution:1024*R.G.B*600,Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Two-channel AHD video input,adjustable display of single and two-segment images and picture-in-picture images Full images/2 images adjustable ,Support AHD720P/960P/1080P and CVBS multi-video hybrid input
 Automatically switch to V2 when reversing,Reverse reference point
TWO channels independently adjust the image flip in left, right, upper and lower directions
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
Supports fast photography,Supports replay previous videos and images. It supports  pause, fast forward, fast backward and other operations.
Video files can be locked for protection. Locked files will not be overwritten and deleted.
Storage card supports overlay deletion automatically and manual deletion
Video storage:SD high-speed card, maximum support256G
Video compression format:H.264 compression mode
Power supply: Power supply: DC 9V-36V input,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
RCA/ 4pin connector (Optional)
Dimension:220*107.2*15(33)mm
