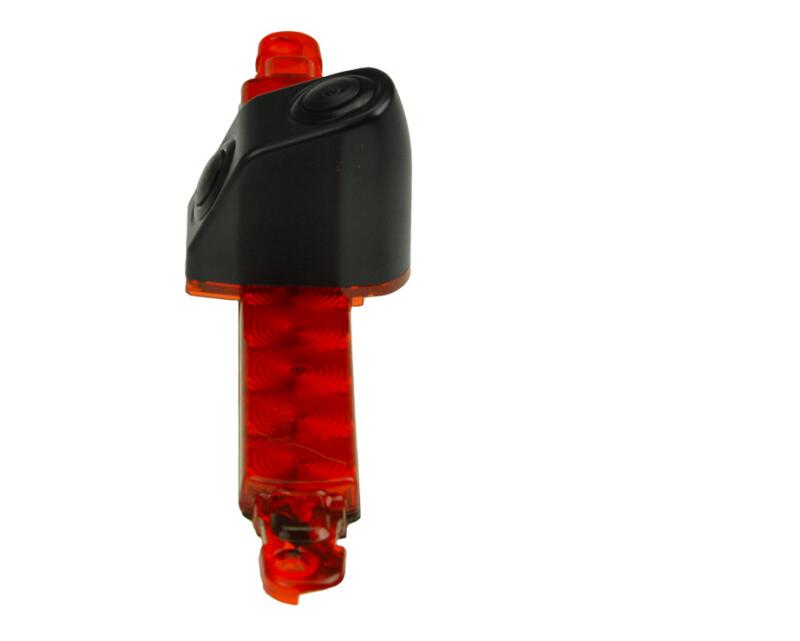

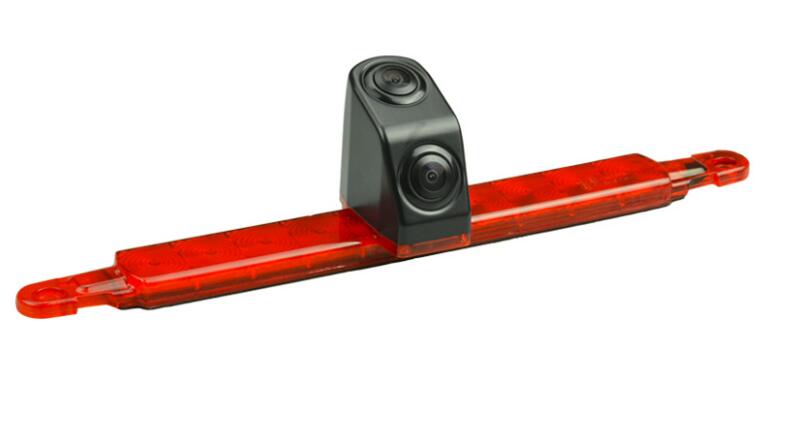

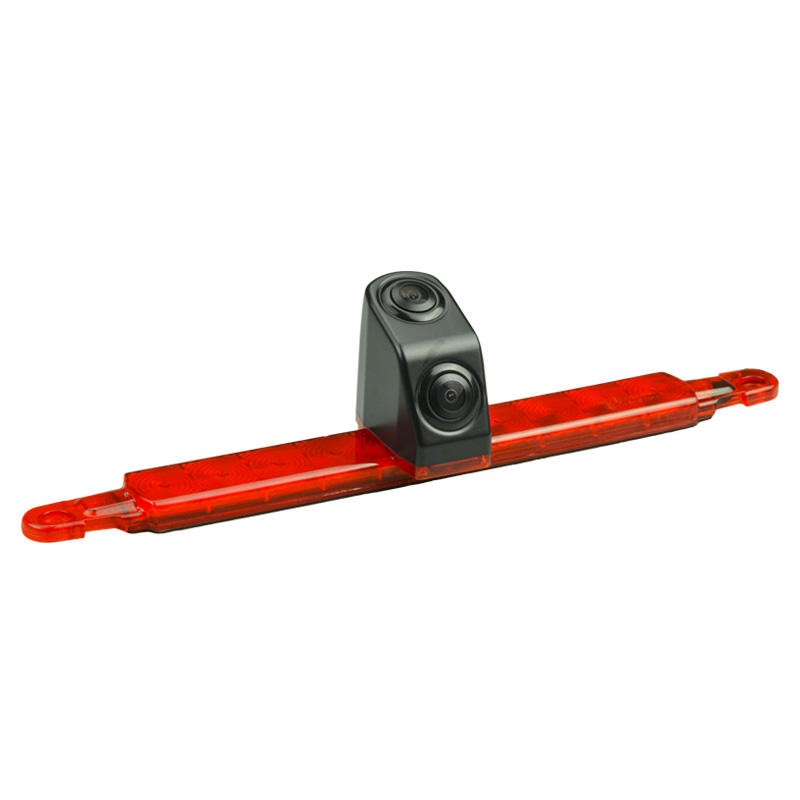

ST- CIT201 Two Lens universal brake light camera

Item No.

ST- CIT201

Image Type

1/3" Color CCD/CMOS

Night vision

With IR lamp

TV System

NTSC/PAL

Lens Angle (Deg.)

170 degree

IP Rating

IP69K

Vibration Rate

10G

Connector

4P connector or RCA connector for selection

Effective Pixels

N: 510×492 pixels P: 500×582 pixels

Horizontal Resolution

700TVL

B.L.C

Back light Compensation (Auto)

White Balance

Auto White Balance (Auto)

Minimum Illumination

0Lux (LED ON)

S/N Ratio

greater than or equal to 48dB

Electronic Shutter

1/60~1/100,000 Sec

Power consumption

<3W

Built-in Lens

f: 2.8mm

Power Consumption

DC 12V (+/-10%)

Audio

available

Operation Temperature

-30℃~+70℃.RH95% Max

Storage Temperature

-40℃~+80℃.RH95% Max

Certificate

FCC,CE, E-mark, ISO9001, RoHs
