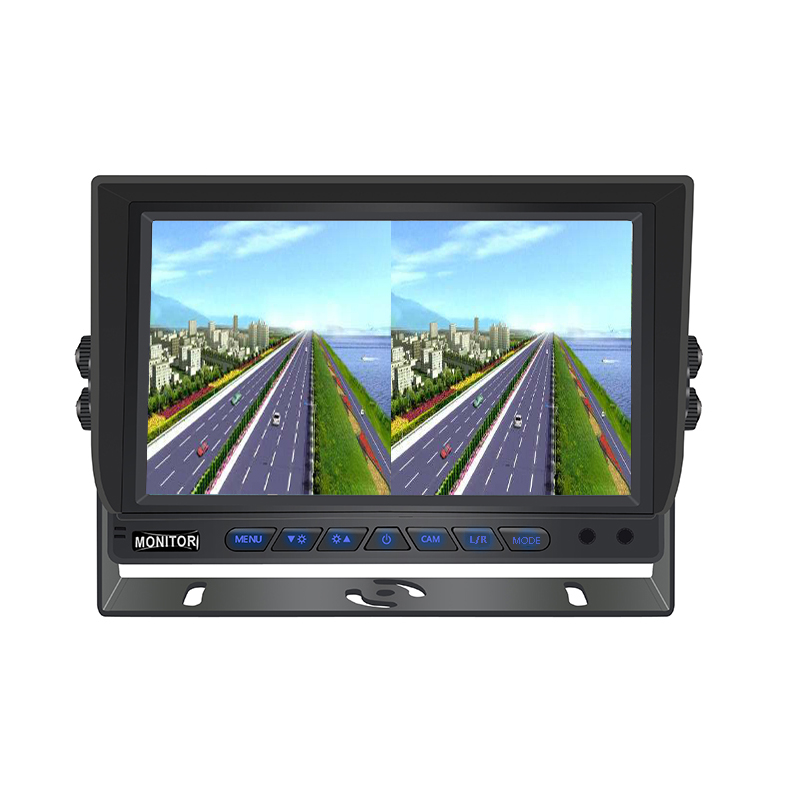

  • SV-M7776D 7'' AHD IPS monitor for 2-4 channels

SV-M7776D 7'' AHD IPS monitor for 2-4 channels

SV-M7776D 7'' AHD IPS monitor for 2-4 channels

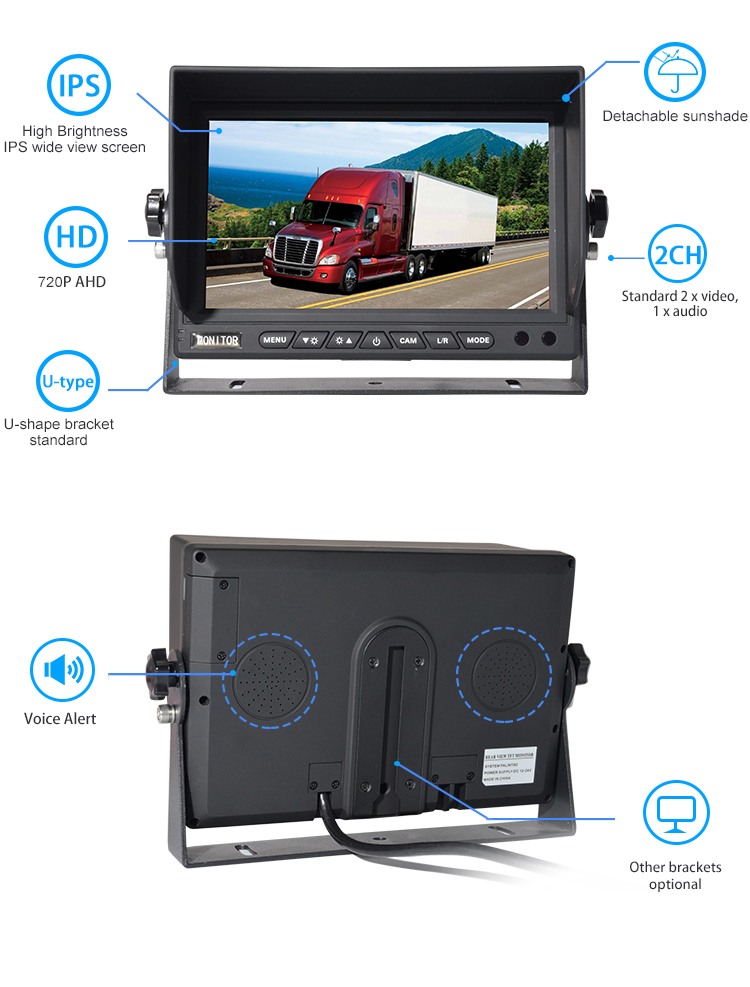

Features:
*Full compatibility with AHD 720P/1080P & CVBS (NTSC/PAL)
*Support mixing connection of cameras of different formats
*High brightness and high resolution display
*Fast boot up and fast switching by button or trigger
*DC12-36V wide voltage range, industrial level PCB design with protection against over-voltage, under-voltage, reverse polarity,static and surge, etc.
*4-pin aviation connector with waterproof cover
*Various brackets optional
*Rubber finish, detachable sunshade
*7 x electronic buttons with backlight
*Built-in SD card slot
*Non DVR version optional

Specification:
Panel
7’’ IPS
Aspect Ratio
16:9
Resolution
1024x3(RGB)x600
Operating Temperature
-20~+70℃
Brightness
500 cd/m²
Storage Temperature
-30~+80℃
Contrast
700:1
Power Consumption
Max.25W
Viewing Angle
85 /85 /85 /85 (L/R/U/D)
Power for Cameras
Max. 4×600mA, 12V
Voltage Range
DC 12V-36V
Operating Pressure
10~110g
Standard Inputs
2 x video,1 x audio
Initializing Time
3 seconds
TV System
PAL / NTSC
Switching Time
1.5 seconds
SD card storage
128GB
Compression Coding
H.264
