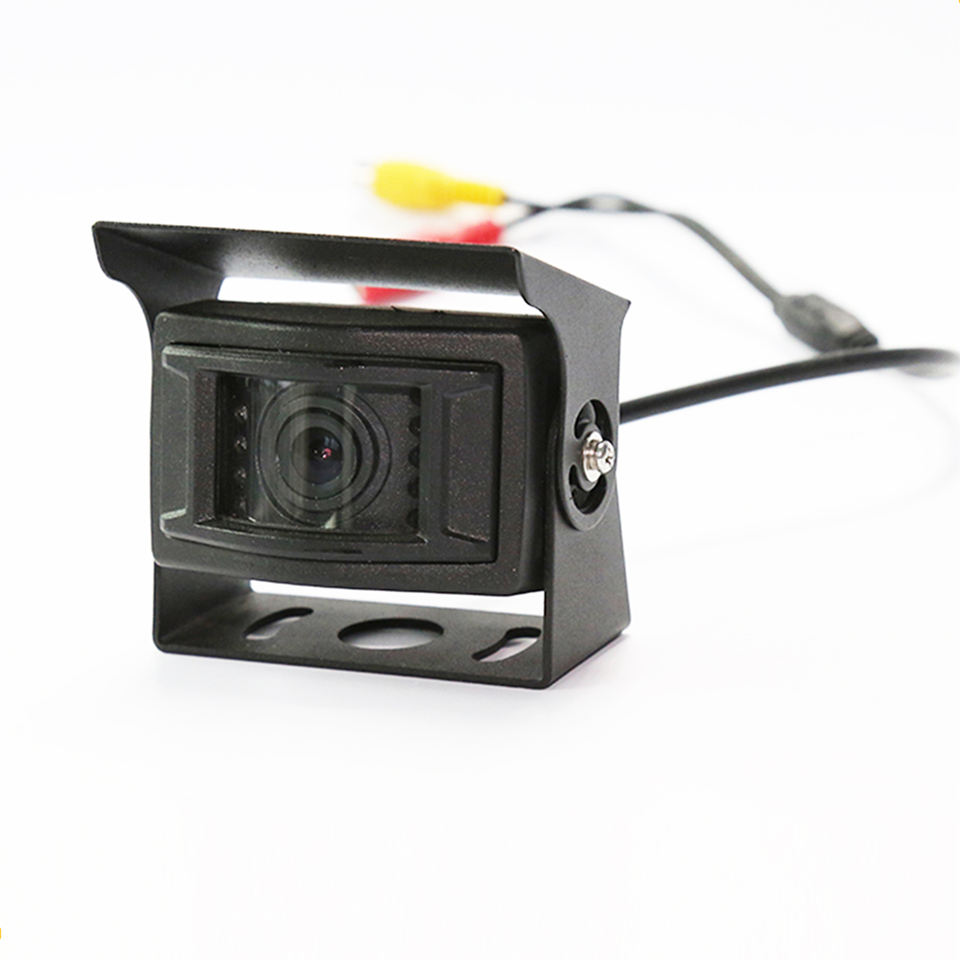

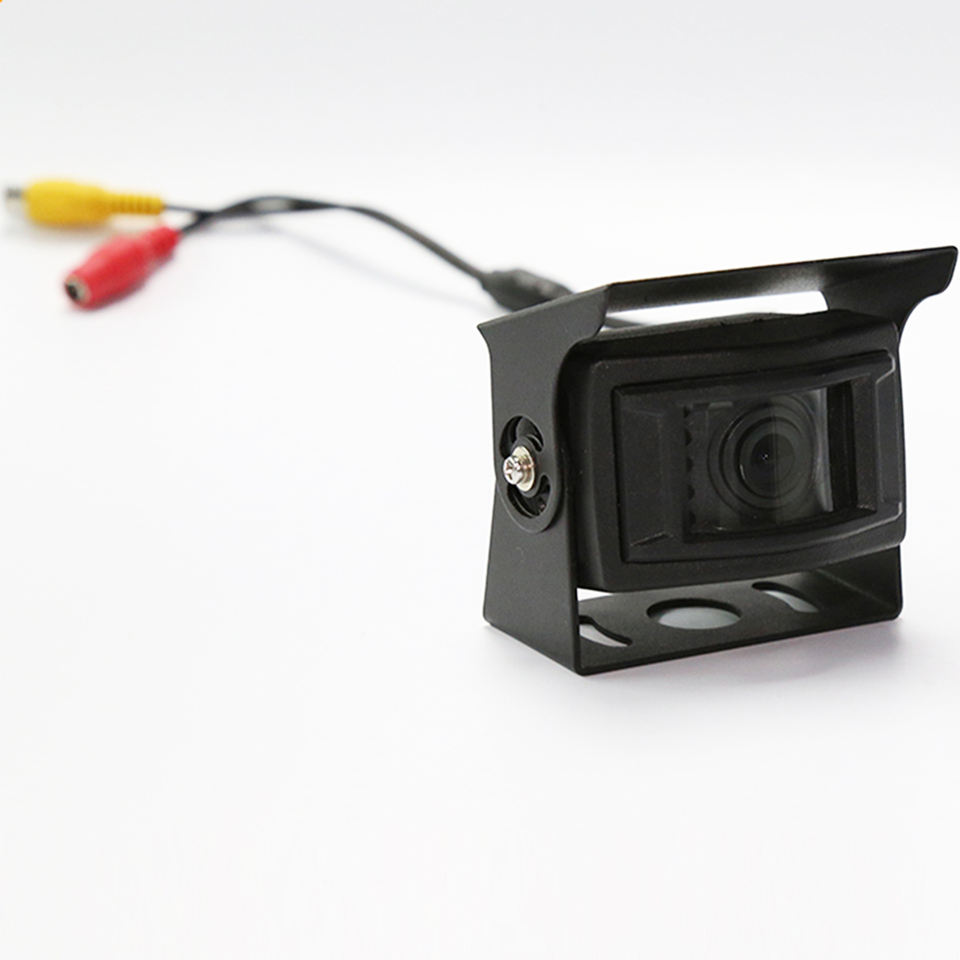

SV-CM606 AHD wide view angle bus camera

SV-CM606 AHD wide view angle bus camera

Image feature:Sharp CCD or Sony CCD
TV System:NTSC/PAL
Image area:5.961mm×4.276mm
Effective pixels:N:510(H)x492(V)/P:500(H)x582(V)
Horizontal Resolution(TV lines):480 TV lines
TV lines:420 or 700 for optional
water-proof rating:IP67-IP68
minimum Illumination:0 Lux with IR
IR LED:10 PCS
Electronic Shutter Time:1/50(1/60)-1/100,000sec.
Scanning System:2:1 Interlace
Sync System:Internal
S/N ratio:>48dB
Video Output:1.0Vp-p,75ohm
Power Source:DC12V±10%
BLC:automatism
AGC:automatism
White Balance:automatism
Operation Temperature:-20℃~+75℃(RH95%Max.)
Storage Temperature:-40℃~+85℃(RH95%Max.)
Package:Unit size:77*54*94mm
Unit N.W./G.W.:275g/350g
Unit Packing:white box
