  • 7‘’ 2CH LCD monitor with bus camera

7‘’ 2CH LCD monitor with bus camera

  • Product Item : SV-CM831S
  • Category: AHD Heavy Duty Monitors
  • 7 " high digital new panel ,16 : 9 image
  • 2 video 4 pin connector inputs
  • Brightness : 500 cd/m2
  • Total pixels:1280(H)*720(V)
  • Product description:7‘’ 2CH LCD monitor with bus camera
  • INQUIRY

Description

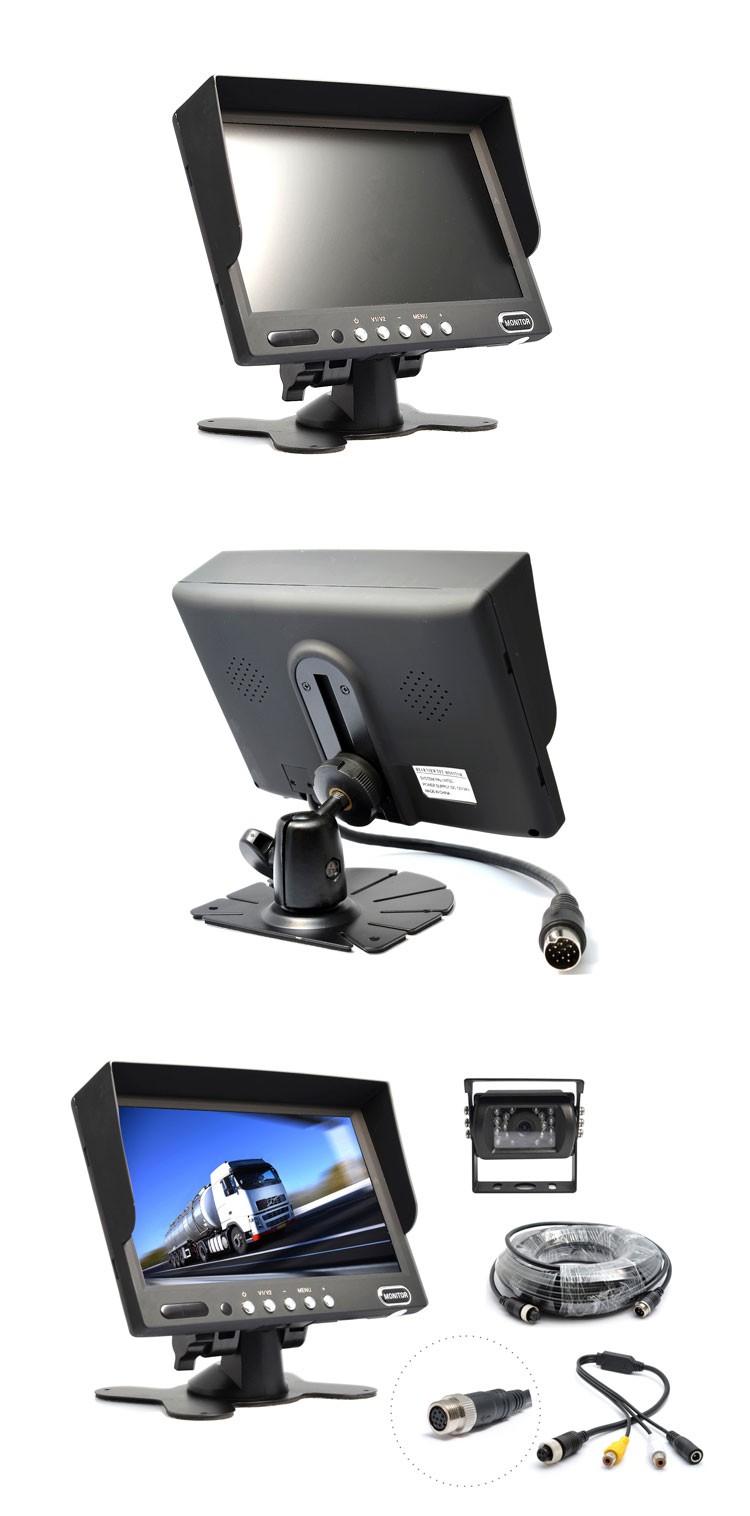

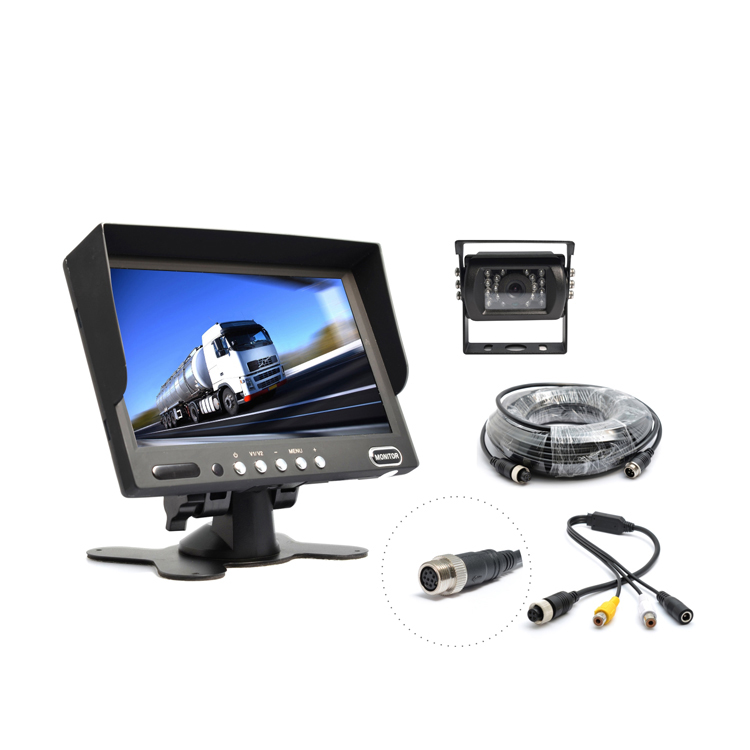

7 inch LCD monitor with camera system(SV-CM831S)

7 inch LCD monitor specs:

7 " high digital new pane :

16 : 9 image

TV system:

PAL / NTSC system

Resolution :

800 x RGB x 480

Contrast :

500 : 1

Brightness :

500 cd/m2

Languages:

8 languages OSDremote control

View angle:

L/R:70,UP:50,down:70 degree

Built-in speaker:

optional

Power supply :



 Dimension:

17.5 x 11.4 x 4.7cm With sunshade



Camera specs:

Sensor:

1/3 CMOS(AHD/CCD)

LED lights:

Built in IR LED lights

View angle:

115°(H)60°(V)

Total pixels:

1280(H)*720(V)

TV system:

NTSC(PAL,AHD Optional)

TV Lines:

700

Mini illumination:

0~0.01 Lux

Power Supply:

DC 12-24V

Waterproof:

IP68-IP69K

Microphone:

Optional

connector:

4 pin aviation
