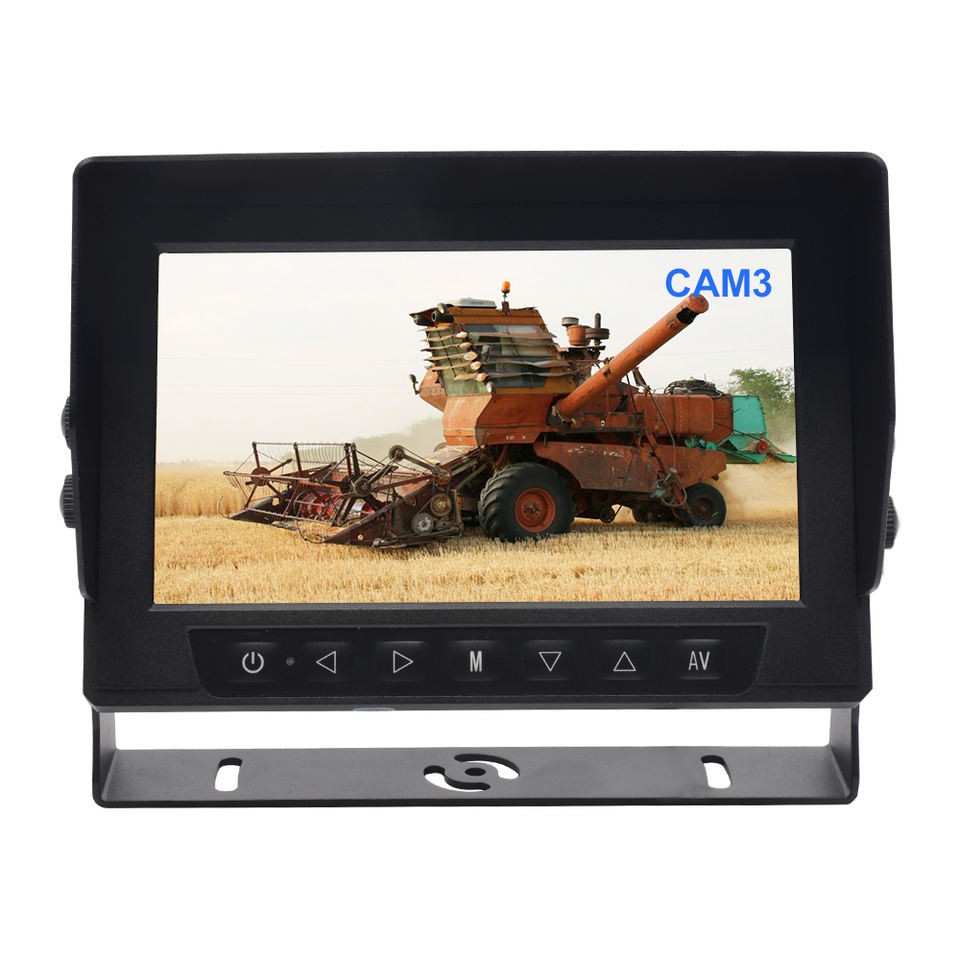

SV-D775W IP69K Waterproof 7'' AHD LCD Monitor

SV-D775W IP69K Waterproof 7'' AHD LCD Monitor

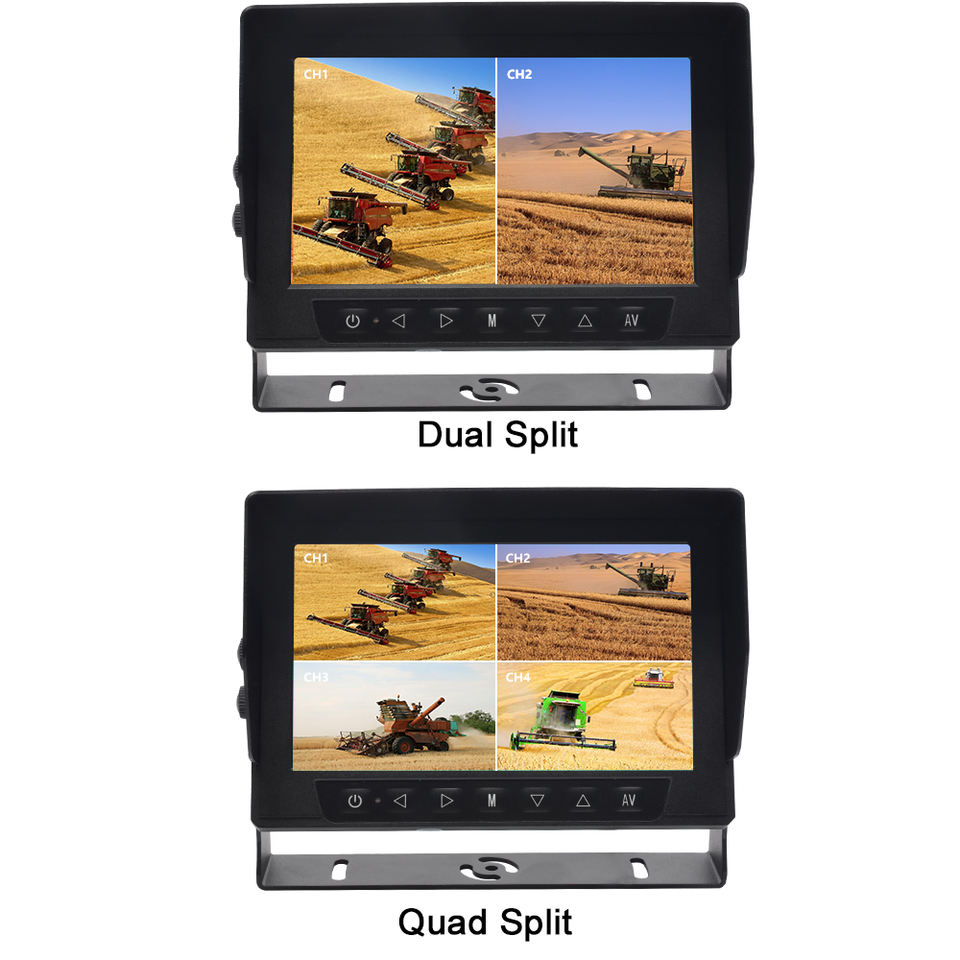

(single,2ch,split,3ch,QUAD are available）

7"-inch AHD vehicle mounted display (Detachable sunshade)
AV Resolution:1024*R.G.B*600
Back Light Luminance：LED,LED，500-650cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
2 channel HD video input, single image display, support720P/960P/1080P  (Video Compatibility: CVBS /AHD)
(optional)3 channel HD video input, single image display, support720P/960P/1080P  (Video Compatibility: CVBS /AHD)
3 ways Trig Trigger priority:V2>V1>V3
Reference point and time control for reverse gear setting
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
Power supply: DC12V-36V input，12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Waterproof grade: IP69K
Apearance color:Ferrous metal
standard：Metal U type bracket,  Detachable sunshade
RCA/ 4pin connector (Optional)
Dimension:188*127.2*34(79)mm
