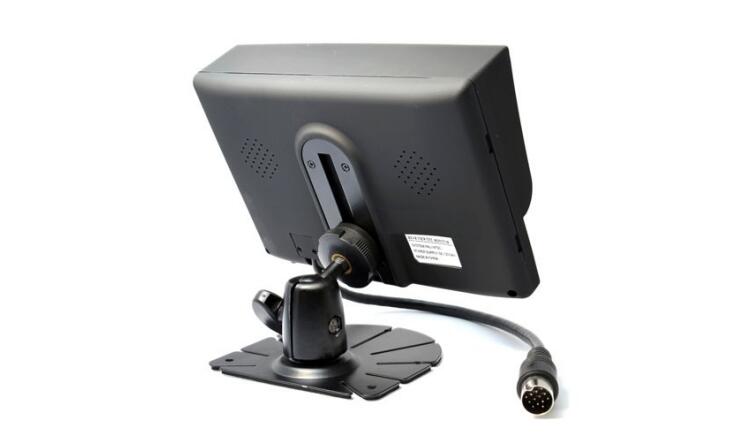

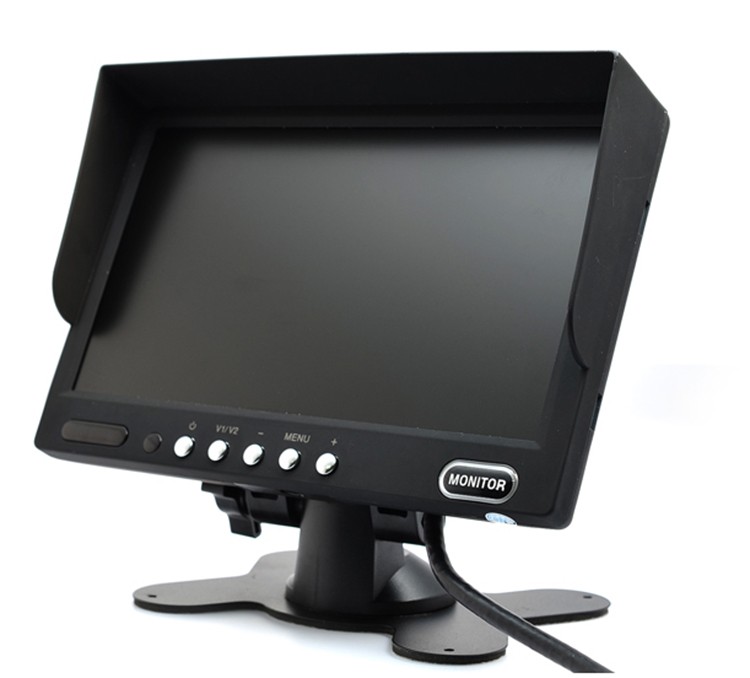

7'' AHD LCD monitor

7 " high digital new pane :

16 : 9 image

TV system:

PAL / NTSC system

Resolution :

800 x RGB x 480

Contrast :

500 : 1

Brightness :

500 cd/m2

Languages:

8 languages OSD，remote control

View angle:

L/R:70,UP:50,down:70 degree

Built-in speaker:

optional

Power supply :

12-24V

Dimension:

17.5 x 11.4 x 4.7cm With sunshade

Sensor:

1/3 CMOS(AHD/CCD)

LED lights:

Built in IR LED lights

View angle:

115°(H)60°(V)

Total pixels:

1280(H)*720(V)

TV system:

NTSC(PAL,AHD Optional)

TV Lines:

700

Mini illumination:

0~0.01 Lux

Power Supply:

DC 12-24V

Waterproof:

IP68-IP69K

Microphone:

Optional

connector:

4 pin aviation
